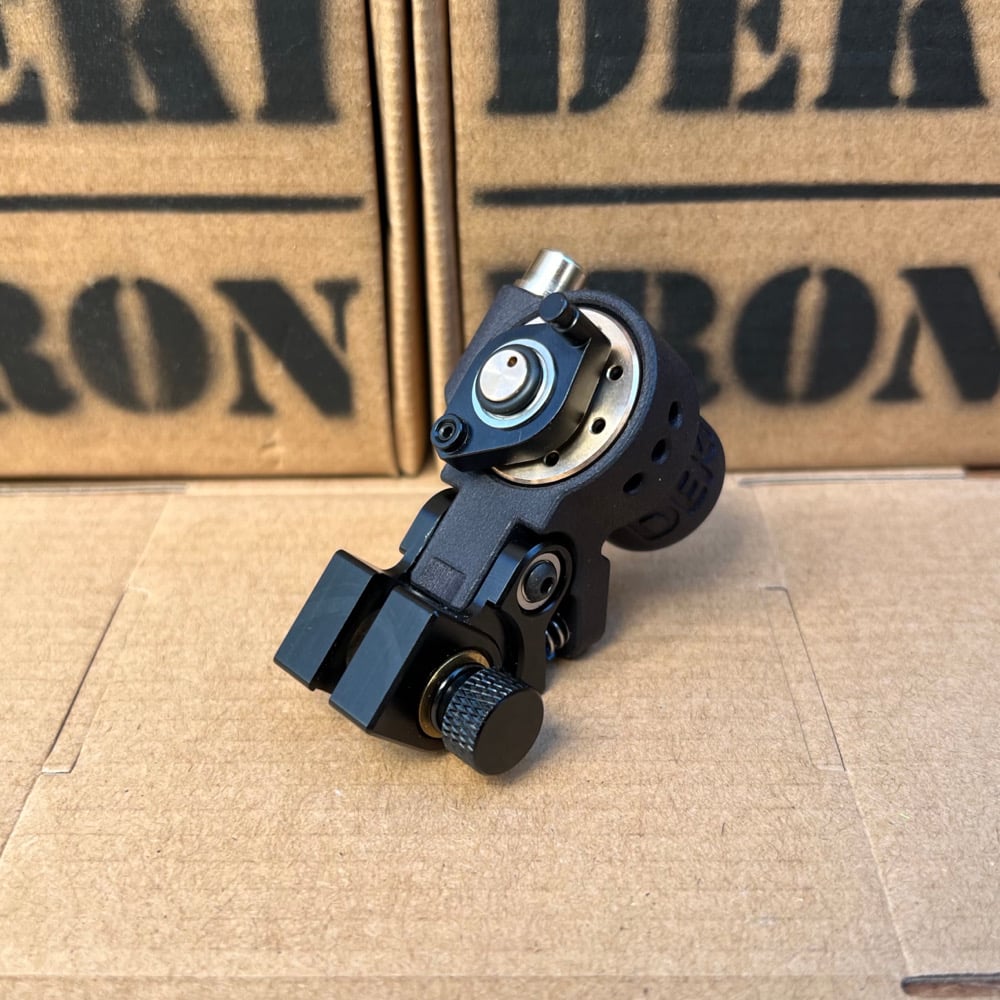

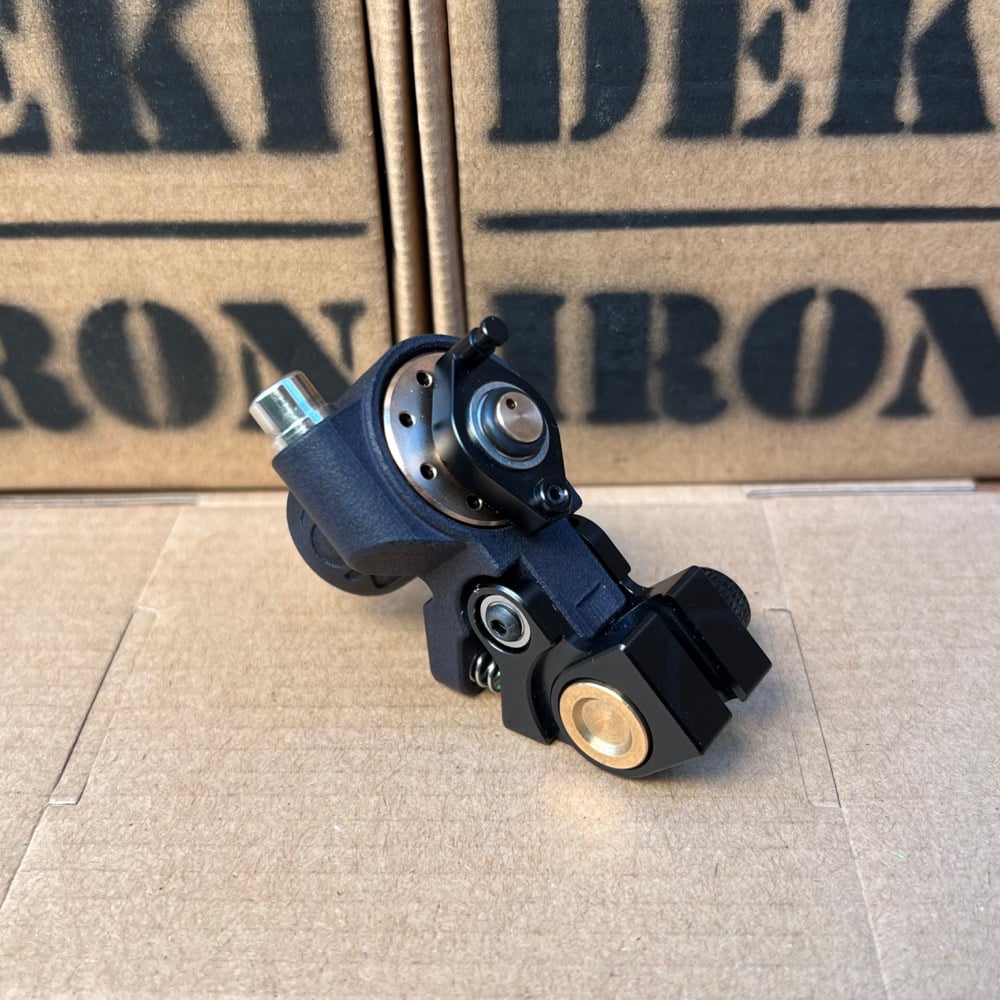

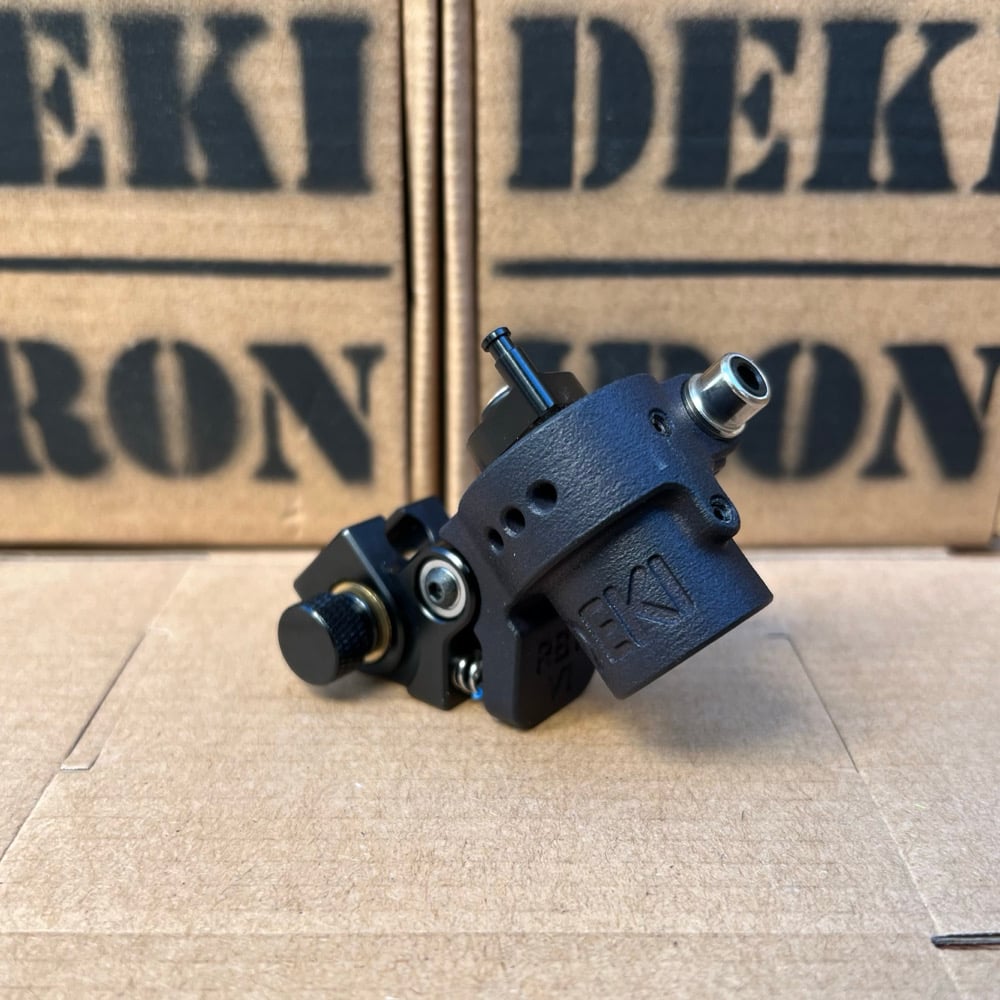

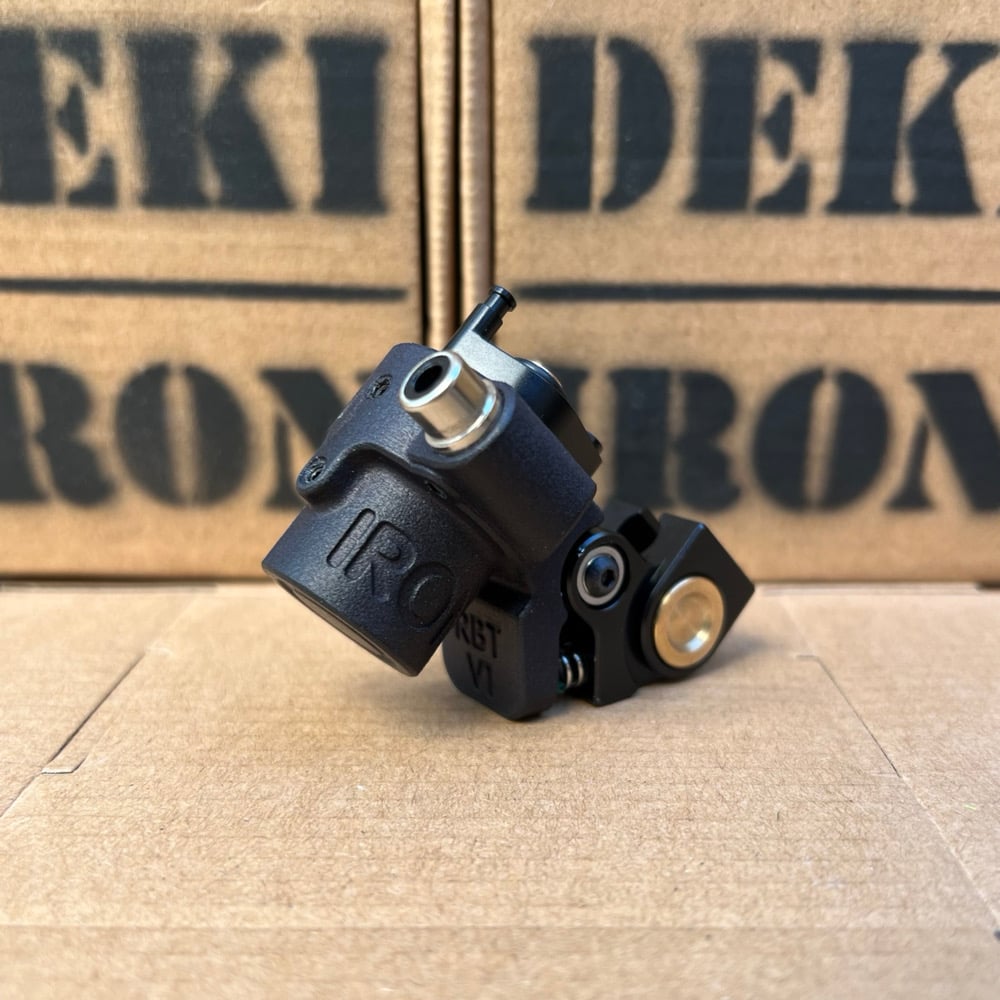

RABBIT V1

- Cnc parts alluminum 7075 and brass
- Motor body in Nylon PA12
- 7w coreless motor
- Fully on bearings

- 4mm stroke
- 90gr
- Voltage of use 3/9V
- Year 2025

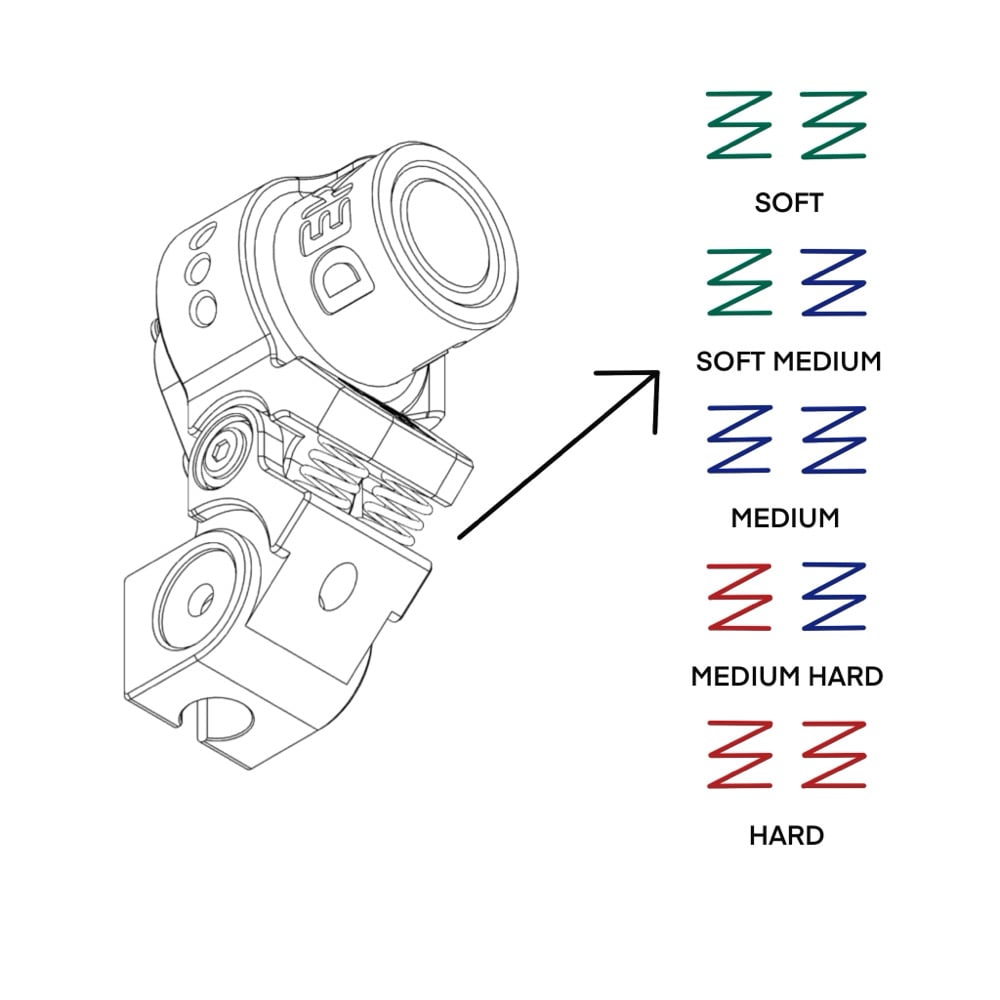

After many requests for a cartridge-only machine, I decided to create something new, since I don't like direct machines, I decided to make it cushioned with 2 rear springs that will be supplied in 3 different sizes:

SOFT: Very soft and cushioned stroke ideal for thin lines and light blending, for long work with multiple passes to stress the skin as little as possible

MEDIUM: For medium and large needles with a more decisive stroke for full and solid lines and saturated colors in less time but with less cutting and stress on the skin thanks to the cushioning, ideal for all types of work

HARD: Very direct and decisive blow but not very cushioned for large needles

The springs come in pairs of 2 but you can experiment by mixing them, for example by fitting 1 hard and 1 medium to find your ideal setting.

The stroke is 4 mm and the cam has been reinforced and runs on 2 separate bearings to ensure reliability and stability, with the addition of a pin where to attach the elastics to cancel the cartridge membrane so you can push even large needles, all on a powerful 7 W coreless motor!
